The Deep-Sea Benchmark for Turbid-Water Vision
Product Overview

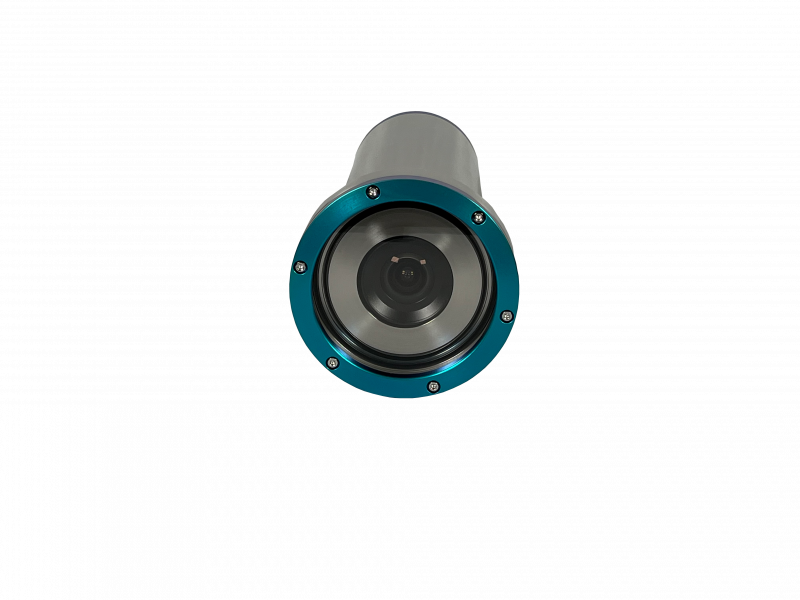

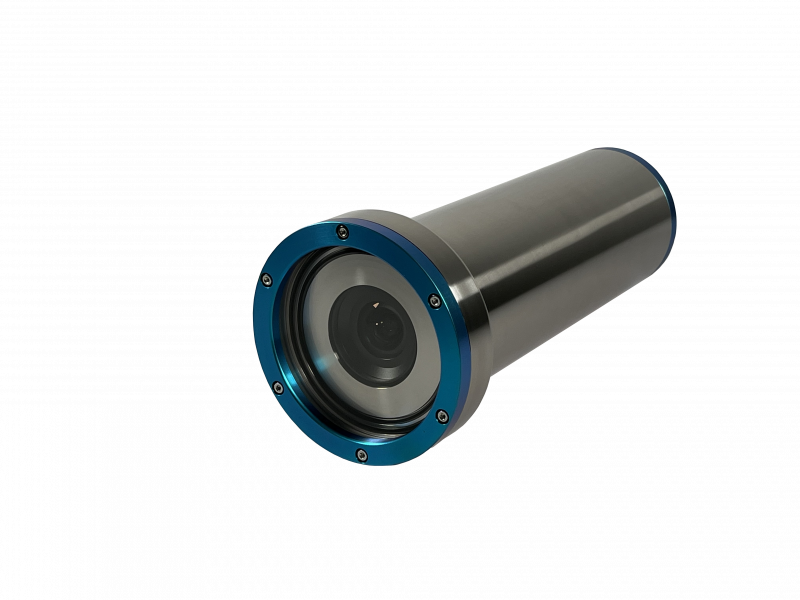

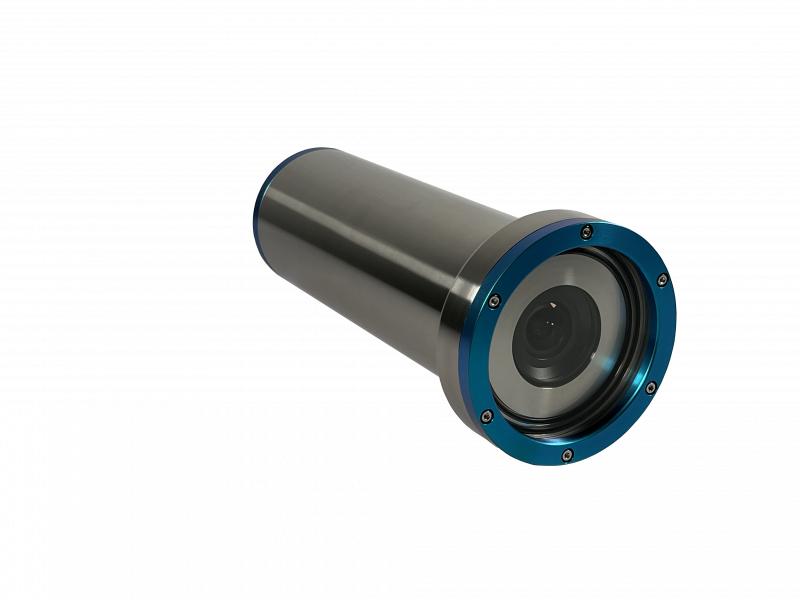

The ORPHIECAM 3000 is the ruggedized, deep-water flagship of the Orphie imaging line by i2S. While its siblings (the 300 and 300 Mini) are optimized for shallow-water tasks, the 3000 is specifically engineered for the extreme pressures of the deep ocean, rated for operations down to 3,000 meters.
It maintains the core Orphie technology—patented real-time algorithms that effectively "filter" murky water—enabling Work-Class ROVs and deep-sea AUVs to see three times further than with standard HD cameras.
| Specification | Details |
|---|---|
| Depth Rating | 3,000 meters (9,842 ft) |
| Sensor | 2/3″ CMOS Color Sensor |
| Resolution | 1080p (Full HD) @ 25 fps |
| Field of View (Water) | 67° (Diagonal) / 59° (Horizontal) / 48° (Vertical) |
| Housing Material | Titanium |
| Lens Material | Hardened Borofloat |
| Latency | ~150ms (Ethernet H.264) |
| Power | 12-24V / 13W Maximum |
| Data Transmission | Ethernet 100BASE-T |

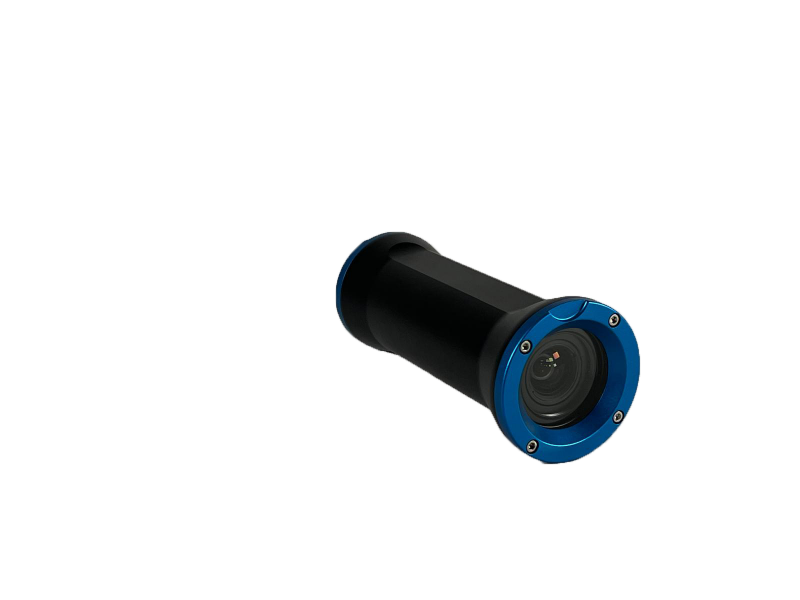

The Ultimate Divers' Ally for High-Visibility OperationsProduct Overview The ORPHIESCAPH is a specia...

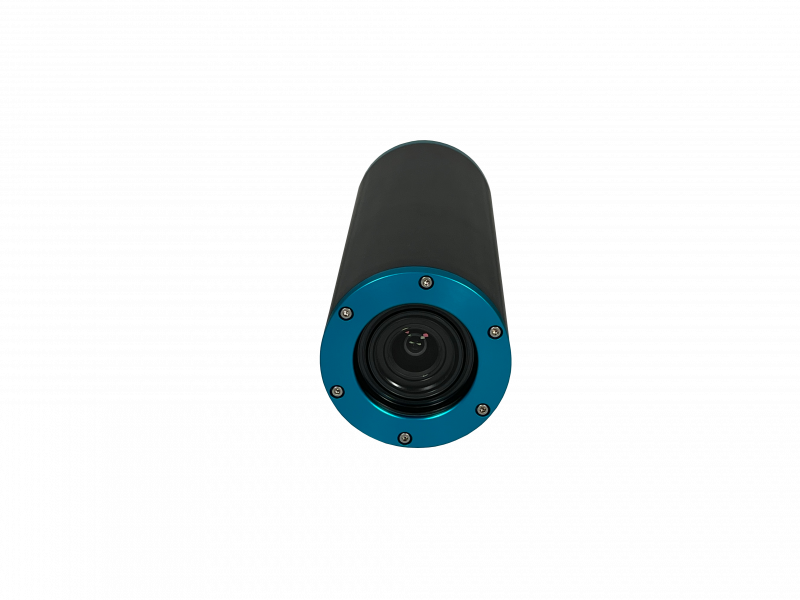

Ultra-Turbid Water Imaging for Shallow-Water InspectionProduct Overview The ORPHIECAM 300 is th...
