Precision Wireless Cable Measurement for Subsea Operations
Product Overview

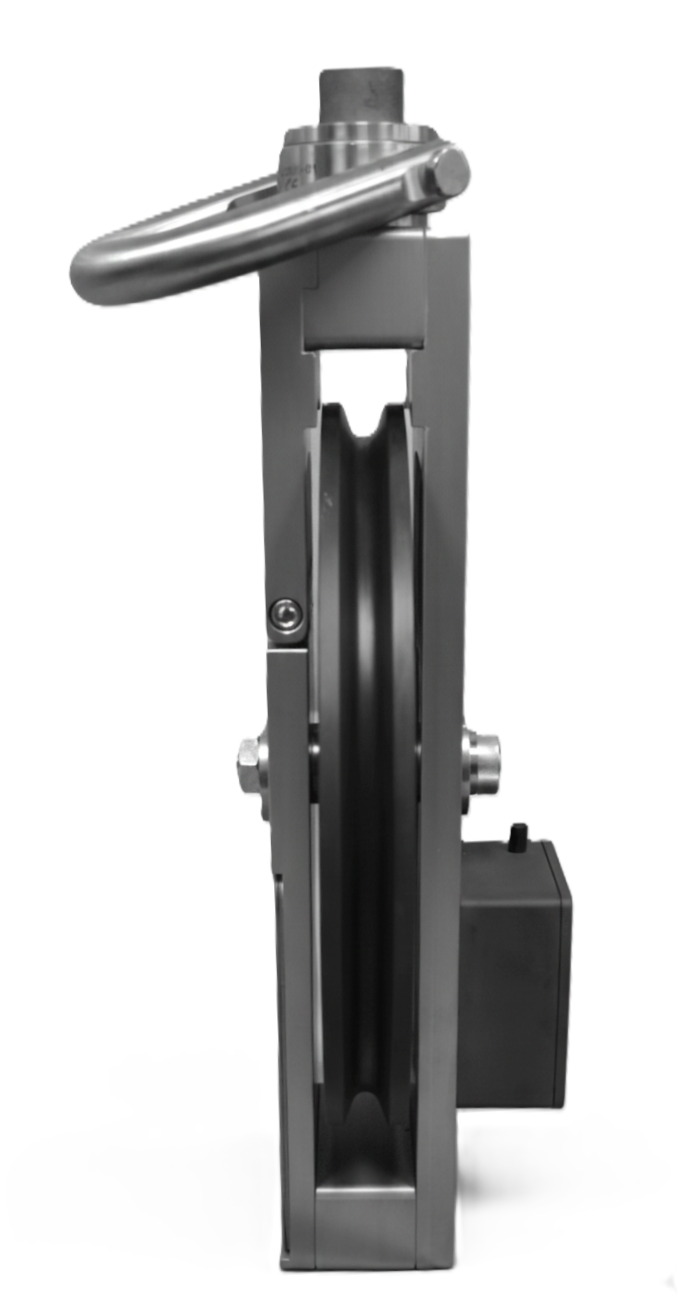

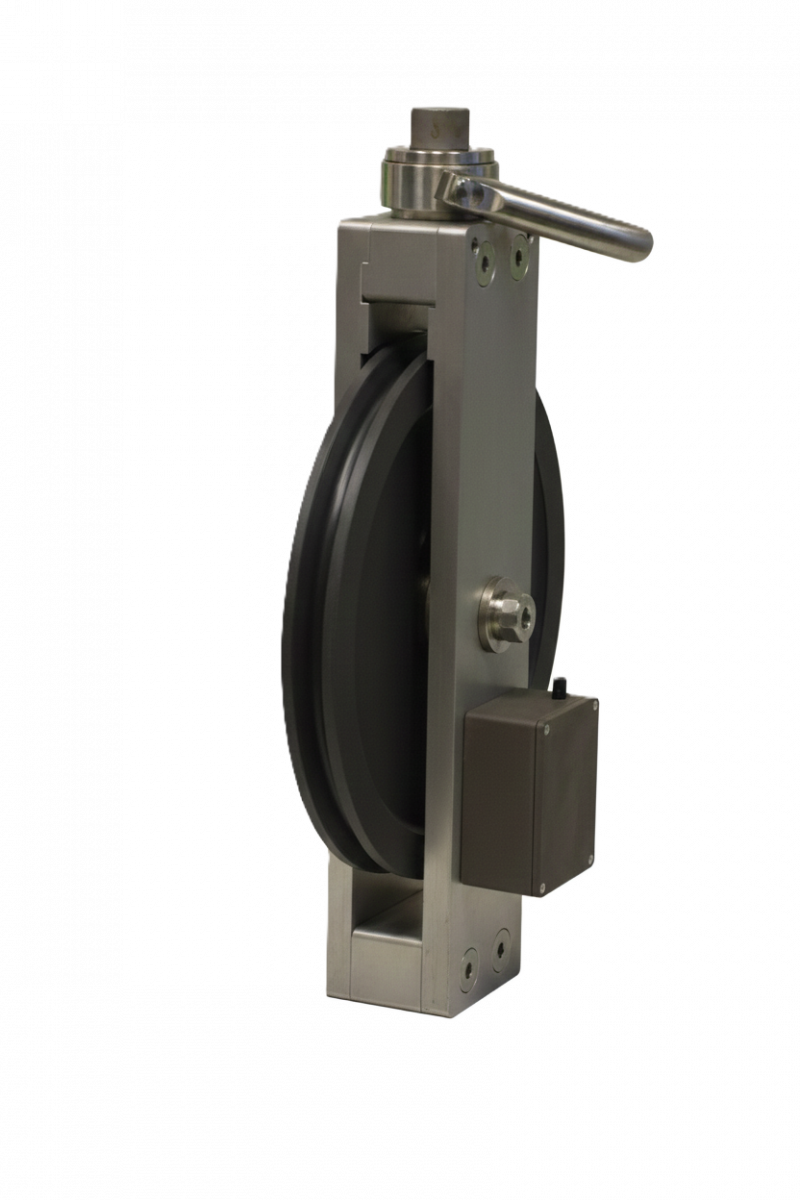

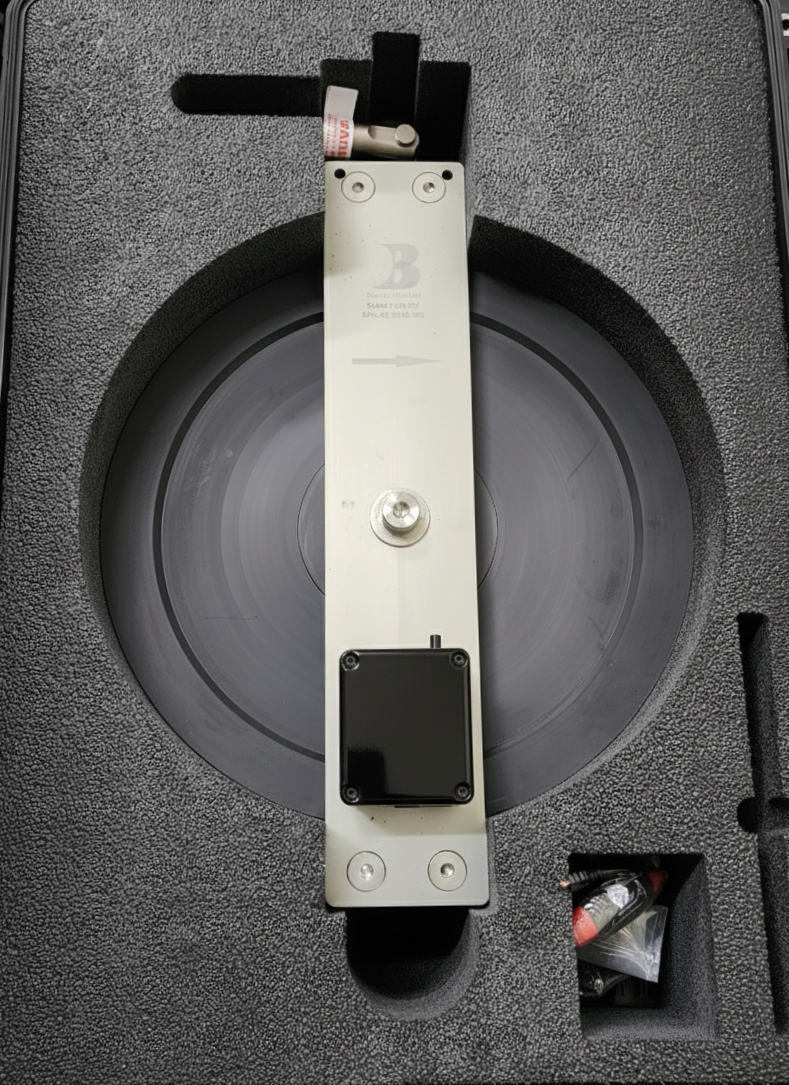

The BeYond SMART-COUNT is a modern, field-proven cable measurement system designed to track the paid-out length of cables, umbilicals, and ropes during subsea deployments. It is a significant upgrade from legacy mechanical counters, utilizing wireless technology and solar power to provide a reliable, cable-free monitoring solution for the back deck.
The system is available in two primary sizes, 14" and 20", to accommodate different cable diameters and minimum bend radii (MBR) requirements.
| Feature | SC-1000 (14" Sheave) | SC-2000 (20" Sheave) |
|---|---|---|
| Sheave Circumference | 1.0 Meter | 1.44 Meters |
| Max Cable Diameter | 0.6 in (15 mm) | 0.9 in (23 mm) |
| Safe Working Load (SWL) | 5,000 lbs (2,268 kg) | 10,000 lbs (4,536 kg) |
| Material | Aluminum / SS / Moly Nylon | Aluminum / SS / Moly Nylon |
| Wireless Radio Range | 300 meters (987 ft) | 300 meters (987 ft) |
| Height | 26.5" | 31.8" |
| Weight | ~20 kg | ~25 kg |
